Home ＞ Combination Pole ＞ Conventional Combination Pole
Conventional Combination Pole
Wholesalers’ Favorite Combination Rod Three Advantages
- Easy to store,
- Convenient transportation,
- Easy to assemble
4 Meter Pole Dimension(mm)
Technical Specifications
| Model Number | Conventional Combination Pole |
| Material | Galvanized steel |
| Diameter | ∅114-76mm |
| Thickness | 1.6mm/2mm |
| Base Diameter | ∅250mm |
| Base Thickness | 12mm |
| Base Mounting hole | 4*￠16mm |
| Product certification | ISO 9001-2008 |
| Root Size | 145*145*400mm |
| Color | White/Black/Blue |
| Surface Treatment | Powder Coated |
| Standard Accessories | Lightning rod, Lock nut, Bracket mounting wrench, Waterproof plug, Connection cap, Instructions. |

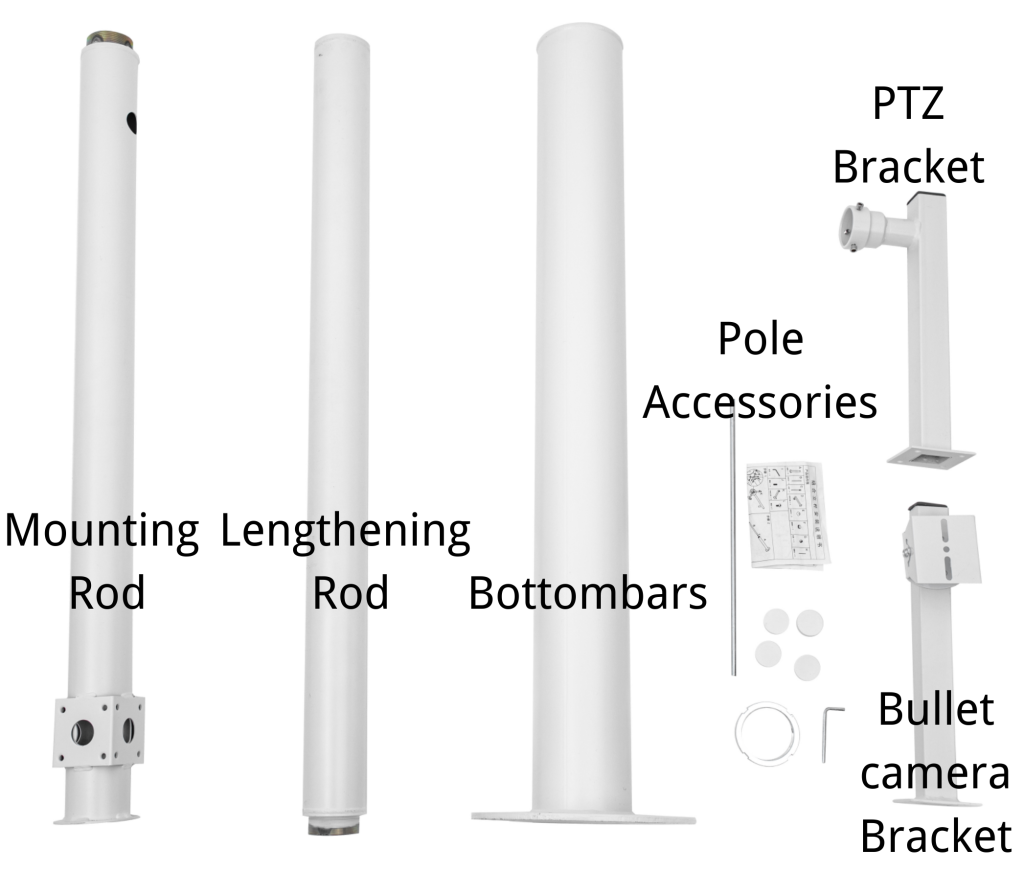

Combination Pole Components
Combination Pole Assembly Mode
3 Meter Pole
1M Bottombars + 1M Lengthening rod + 1M Mounting rod
3.5 Meter Pole
1M Bottombars + 1.5M Lengthening rod + 1M Mounting rod
4 Meter Pole
1M Bottombars + 1.5M Lengthening rod + 1.5M Mounting rod
4.5 Meter Pole
1.5M Bottombars + 1.5M Lengthening rod + 1.5M Mounting rod
Combination Pole Installation Step Schematic Diagram
